D241 Intelligent Printer

To meet the intermittent coding demands of packaging lines and labeling machines, Dikai developed the D241 /D321 thermal transfer intelligent printer. Aiming at upgrading hot stamping coders, D241/D321 can achieve intelligent and clear printing on films and labels with high quality ribbons of anti-oil, anti-freezing, boiling resistance, and scratch resistance. With high quality printing features, D241 /D321 are also cost-effective, convenient for avoiding manually changing printing types.

Applications

Explore the D241 and discover how it can transform your operations.

Advanced

Upgrading the traditional hot stamping coder, without pre-heating and manually changing types.
200 dpi resolution for clear prints.
Support real-time and lot No. printing for traceability.

Environmental

Consumables are thermal transfer ribbons, non-toxic, tasteless, and no dust, suitable for application with strict environmental protection requirements.
No damage to the packaging material waste reducing.

Intelligent

Can print time, variables, text, grahics, etc.
Within the print area, character size, line number, and orientation can be edited at will.
The HMI supports hot swap; mufti-printers can be connected with one HMI.

Beneficial

Character size is adjustable within print area; min. gap between prints 0.5mm; cost saving on consumables.
Long ribbon reduces the frequency of downtime for ribbon changing.
Easy to change the printing message on HMI.

Comparison

Comparison	Hot Stamping Coder	D241 Intelligent Printer
Gap Between Prints	≥ 2 mm	≥ 0.5 mm	√
Real-time Printing	No	Yes	√
Print Features	Fixed text	Date, Time, Counter, Text, etc.	√
Print Effect	Unstable	200 dpi	√
Adhesion	Normal	Great	√
Print Area	About 3 lines	No limitation within 24×15 mm	√
Print Frequency	Maximum 120 ppm	Up to 200 ppm	√
Package Damage	Scratching or stamping effect	No damage	√
Changing Print Files	Manually changing types	HMI and computer software	√
Preparation Before Printing	Pre-heating to print	Start-up to print	√
Ribbon Length	100 meters	350 meters	√

Technical Parameter

Technical Parameter	Model: D241
Print Head	24 mm width, 200 dpi
Print Area	24 mm × 15 mm
Print Frequency	Maximum 200 ppm, 20 m/min
Ribbon Size	25/33 mm width, 350 m length
Pause Time between Prints	≥70 ms
Print Features	Time, Date, Variables, Text, etc.
Operation	Flexible HMI operation suppoǅs hot swap; Multiple machines can be controlled by one HMI; Easy integration with packaging machine.
Interface	USB, RS485
Compressed Air Requirements	No need air supply
Electrical Requirements	AC90-264 V, 2 A; 50/60 Hz
Environmental Requirements	Temperature: 0 – 40°C; Humidity: 10% to 90%, non-condensing

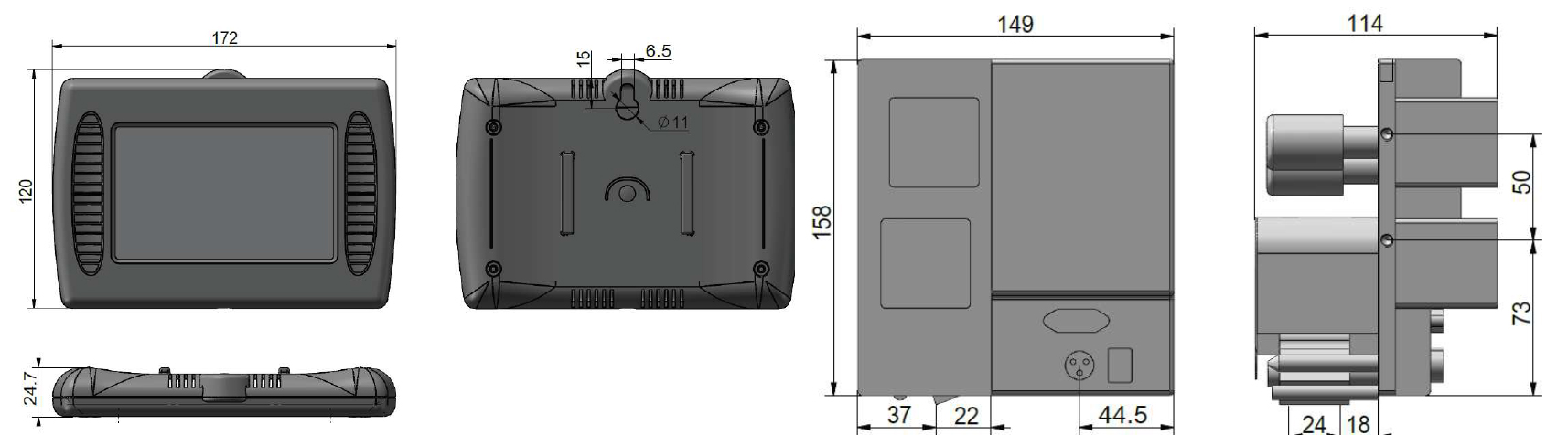

Dimensions	Printer Unit: 158 × 149 × 114 mm Controller: 173 × 140 × 83 mm
Weight	Printer Unit: 2.1 kg; Controller: 0.48 kg

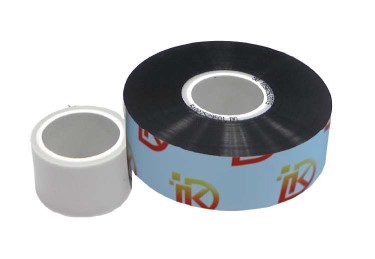

Series	Grade	Features
DG	Advanced Tier TTR Wax/Resin Base	Good Adhesion; Anti-Scratching, Anti-Taping.
DC	Elite Tier TTR Enhanced Wax/Resin Base	Better Adhesion; Anti-Scratching, General Purpose Ribbon.
DT	Premium Tier TTR Resin Base	Excellent Adhesion; High Temperature Resistance.
DN	Extraordinary Tier TTR High Resistance Resin Base	Excellent Adhesion with Special Resistance Available for high temperature, boiling, low temperature, chemical, etc.
DP	Advanced Tier TTR Wax/Resin Base	Special for paper and label material.
