DC830m 40 Micron-nozzle Continuous Inkjet Printer

Dikai DC830m continuous inkjet print-ers, featured a User-friendly interface,multilingual operation system,high-speed Ethernet access, are dedi-catedly designed for the needs of intelligent production. Thanks to its stability, ease-of-use,versatile func-tions and reliable printing quality,DC800 series CIJ printers are widely applicable in food, pharmaceutical,beverage, cosmetic, auto parts, extru-sion, household paper, chemical,tobacco and other industries.

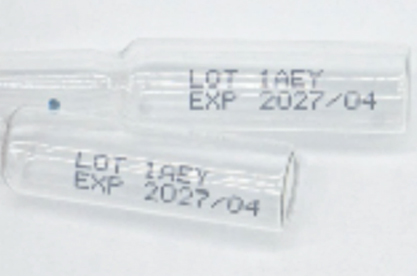

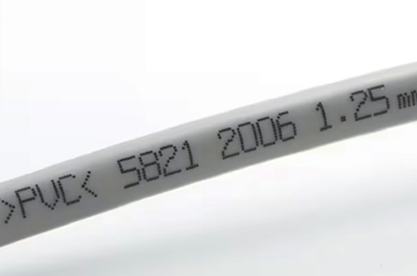

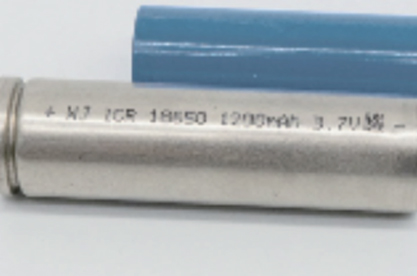

Applications

Explore the DC830m and discover how it can transform your operations.

Simplicity

  • Based on Linux system, and easily to operate interface.
  • WYSIWYG 10.1-inch HD Touchscreen and User-friendly interface
  • Integrally designed nozzle with high-precision molding and superior sealing

User-friendly

  • Newly upgraded editor for all kinds of message including barcode
  • USB & Ethernet ports available for easy acquiring external data

Intelligent

  • Scalable and expandable
  • Support external data input.
  • Multi-language operating system and input method,
  • Supportive of customized font and complex graphics

Reliable

  • Stainless steel cabinet,hygienic and easy-to-clean with high capability of anti-electromagnetic interfer-ence.
  • New generation of gem nozzle with temperature control to ensure stable and reliable production.

Specification

Feature Details
Print Height 34 dots
Print Lines 1–4 Lines (7x5 dots)
1–5 Lines (5x5 dots)
Max. line speed 430m/min @5*5
Print Font 5×5, 7×5, 9×6, 12×8, 12×12, 16×11, 19×14, 24×17
19×14, 24×17, 24×24, 32×22
Nozzle 40u nozzle with temp control
Supported Fonts Letters, Arabic numerals and common symbols, serial numbers, automatic dates,
user-defined characters, bar codes, QR codes, external data,
can directly edit Chinese characters and trademark patterns
Character Size Height: 1~12mm
Print Distance 2–20mm (Standard: 10mm)
Print Direction 360° all-round printing
Operation Interface 10.1” Touch Screen
System Language Multilingual including Chinese simplified, Chinese Traditional, English, German,
Portuguese, Russian, Spanish, Thai, Arabic, Croatian, Persian, Slovak, etc.
Consumable Ink: 500ml; Additive: 750ml
Protection Level IP55
Data Storage 1000+ print files
Interface USB, RS485, Ethernet
Umbilical Cable Length Standard Length 3m
Operating Temperature 0–45°C
Humidity Range Relative Humidity 30–90%, Non-Condensing
Power Supply 1 Phase AC100–120/220–240V ±10%, 50/60Hz, 150VA
Net Weight 20KG
Dimension 443mm × 320mm × 603mm
